Fluke 705 Loop Calibrator

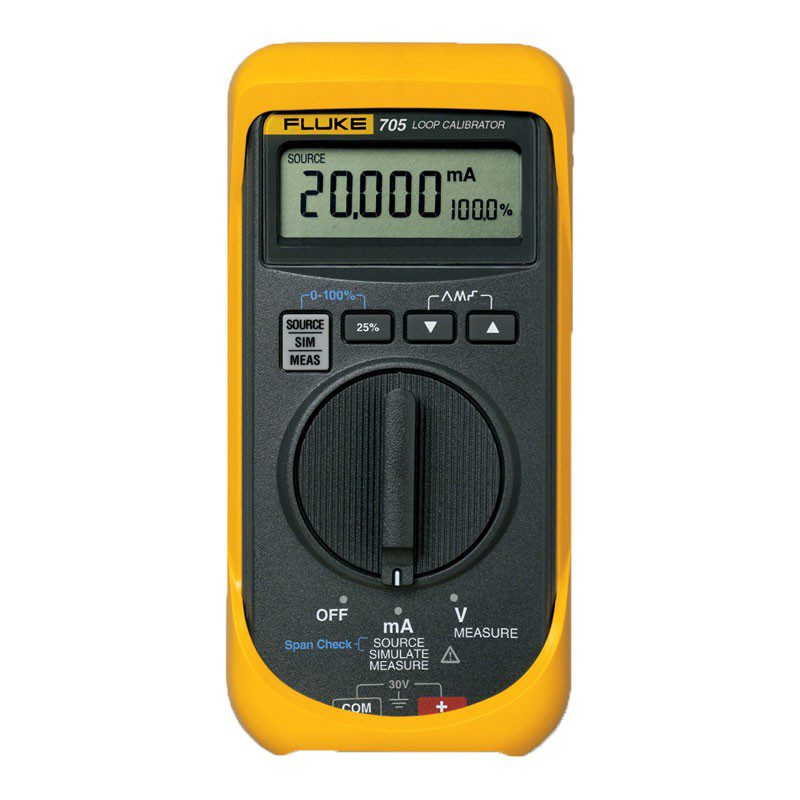

The new Fluke 705 Loop Calibrator is a cost-effective, integrated solution for calibration, repair and maintenance of current loops.



The new Fluke 705 Loop Calibrator is a cost-effective, integrated solution for calibration, repair and maintenance of current loops.



It features:

  • mA sourcing, simulation and measurement
  • 0.02% accuracy and 0.001 mA resolution
  • Simultaneous mA and % of span display
  • Selectable step or ramp outputs
  • 24 V Loop supply with mA measure
  • 0-28 VDC measurement to check Loop Voltage
  • Easy battery exchange without opening the case
  • Compact case with separate protective holster
  • Three year warranty



 Low cost calibrator muscle.

For a powerful loop calibrator at a very affordable price, choose the new Fluke 705 Loop Calibrator. This feature-rich solution to loop calibration, maintenance and repair offers:

  • A large display and simple, pushbutton interface for ease of use.
  • Simultaneous mA and % readout for quick, easy interpretation of readings.
  • mA accuracy of 0.02%
  • Push button 25% steps for fast, easy linearity checks. Save time over traditional knob type controls.
  • "Span Check" for fast confirmation of zero and span.
  • Selectable slow ramp, fast ramp, and step to provide smooth outputs for valve slewing and loop functional tests.
  • 24 volt internal loop supply, so you can power and read a transmitter at the same time without carrying a DMM.
  • Single 9V battery that is easily changed.
  • 0 - 20 mA or 4 - 20 mA default start up modes.





Specifications

Current Measurement
Range:  0 to 24 mA
Resolution:  0.001 mA
Accuracy:  0.02% Rdg + 2 LSD
Current Sourcing
Range:  0 to 20 mA or 4 to 20 mA
Accuracy:  0.025% Rdg + 2 LSD
Drive Capability:  1000 Ω @ 24 mA
Current Simulation
Range:  0 to 20 mA or 4 to 20 mA
Accuracy:  0.025% Rdg + 2 LSD
Ext. loop voltage requirement:  12-30 V
Loop Power
   While measuring mA, 24 V
Voltage measurement
Range:  0 to 28 V DC
Resolution:  1 mV
Accuracy:  0.025% Rdg + 2 LSD

Environmental Specifications

Operating Temperature
   -10 ºC to 55 ºC
Storage Temperature
   -40 ºC to 60 ºC
Humidity (Without Condensation)
   0 to 90% (0 ºC to 35 ºC); 0 to 70% (35 ºC to 55 ºC)
Temperature Coefficient
   -10 ºC to 18 ºC, 28 ºC to 55 ºC, ±.005% of range per ºC

Safety Specifications

Safety
   CSA C22.2 No. 1010.1:1992
EMC
   EN50082-1:1992 and EN55022:1994 Class B
Maximum voltage
   30 V

Mechanical & General Specifications

Size
   152 x 70 x 41 mm
Weight
   340g
Batteries
   One 9V battery
Warranty
   Three years
Shock & Vibration
   per MIL-T-28800 for a Class 2 Instrument
Display current and % of span
   Yes
Auto step, auto ramp
   Yes
Span Check
   Yes



---- model accessoires

Model Name

Description

Fluke 705

 Loop Calibrator including:

  • AC70A Alligator Clips
  • C10 protective yellow holster with Flex-Stand™
  • Instruction sheet
  • TL75 safety-designed test lead set
  • NIST- traceable calibration report and data





Accessories common to all models:



Accessory

Description

G3P-Group2
  • GOLD CarePlan.
  • Models covered: 51-2, 52-2, 53-2, 54-2, 192C, 381, 705, 707, 712, 714, 715, 717, 718, 719, 744, 787, 789, 1550C, 1577, and 1587.
  • Extends warranty from three to five years and includes five annual NIST traceable calibrations with data.
S3P-Group2
  • SILVER CarePlan.
  • Models covered: 51-2, 52-2, 53-2, 54-2, 192C, 381, 705, 707, 712, 714, 715, 717, 718, 719, 744, 787, 789, 1550C, 1577, and 1587.
  • Extends warranty from three to five years.
AC220 SureGrip™ Alligator Clips
AC280 SureGrip™ Hook Clips
AC283 SureGrip™ Pincer Clips
AC285 SureGrip™ Alligator Clips
AC175  Alligator Clip Set
AC87 Heavy Duty Bus Bar Clip Set
AC89 Heavy Duty Insulation Piercing Test Clip
TP 38 Slim Reach Test Probe Set
TP1 Slim Reach Test Probes
TP2 Slim Reach Test Probes
TP220 SureGrip™ Industrial Test Probes
TP4 Slim Reach Test Probes
TP74 Lantern Tip Test Probes
TP80 Electronic Test Probes
C100 Universal Carrying Case
C12A Meter Case
C195 Case
C25 Large Soft Case for DMMs
C800 Meter and Accessory Case
TL80A Basic Electronic Test Lead Set
80T-150UA Universal Temperature Probe
80TK Thermocouple Module
PV350 Pressure Vacuum Module
TL220 SureGrip™ Industrial Test Lead Set
TL221 SureGrip™ Test Lead Extension Set
TL223 SureGrip™ Electrical Test Lead Set
TL224 SureGrip™ Insulated Test Leads
TL238 SureGrip™ Test Lead Set for High Energy Environments
TL26A 60 in. 5-Way Test Lead Set
TL27 Heavy Duty Test Lead Set
TL28A Automotive Test Lead Set
TL71 Test Lead Set
TL75 Hard Point™ Test Lead Set
TL76 2mm/4mm Test Lead Set
TL81A Deluxe Electronic Test Lead Kit
