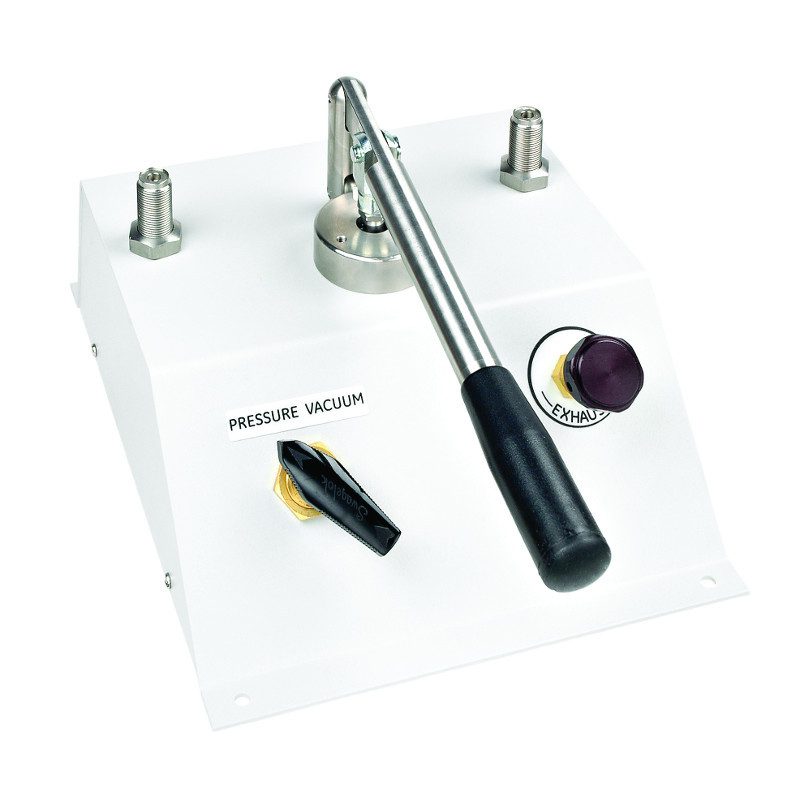

P5510 Pneumatic Comparison Test Pump

This pneumatic comparison test pump is designed for testing pressure measuring instruments against master test instruments.



  • Dual pressure/vacuum capability
  • Bench mount design
  • Built-in handpump as pressure/vacuum source
  • High quality needle valve for fine control
  • Test port adapters that require no PTFE tape or wrenches

Pressure range 0 to 300 psi (20 bar); vacuum range 0 to 24 inHg (800 mbar)

This pneumatic comparison test pump is designed for testing pressure measuring instruments against master test instruments. This cost effective instrument provides precise control for important calibration requirements and include many features found in our popular line of pneumatic deadweight testers.







Specifications

Pressure Range 0 to 300 psi (20 bar)
Vacuum Range 0 to 24 inHg (800 mbar)
Instrument Size (W x D x H) 9.5 x 13 x 7 in (240 x 330 x 180 mm)
Instrument Weight 7.5 lb (3.5kg)
Test Port Adapters 2 sets 1/8, 1/4, 3/8, and 1/2 NPT or BSP





Model Name

Description

P5510-2M Pneumatic Comparison Test Pump



Accessories common to all models:



Accessory

Description

5540 Metric and 5541 BSP Adapter Sets P5540 Metric
M14 x 1.5, M20 x 1.5, 1/8 and 1/4 BSPP5541 BSP
1/8, 1/4, 3/8 and 1/2 BSPP5542 NPT
1/8, 1/4, 3/8 and 1/2 NPT
P5543 Angle Adapter To calibrate gauges with the pressure connection on the rear (for example, panel mount gauges) in their correct operating position, an angle adaptor should be used. The angle adapter uses the standard gauge adapters and positions the gauges at 90º. The maximum working pressure of this unit is 10,000 psi (700 bar).
P5544 Two Gauge Stand This adapter mounts directly to the test port of the calibrator and allows for the calibration of two instruments at the same time, or the connection of a reference test instrument. Maximum working pressure is 10,000 psi (700 bar).
P5551 Pointer Remover/Punch This tool is designed to quickly remove and consistently refit the pointer of a pressure gauge.
