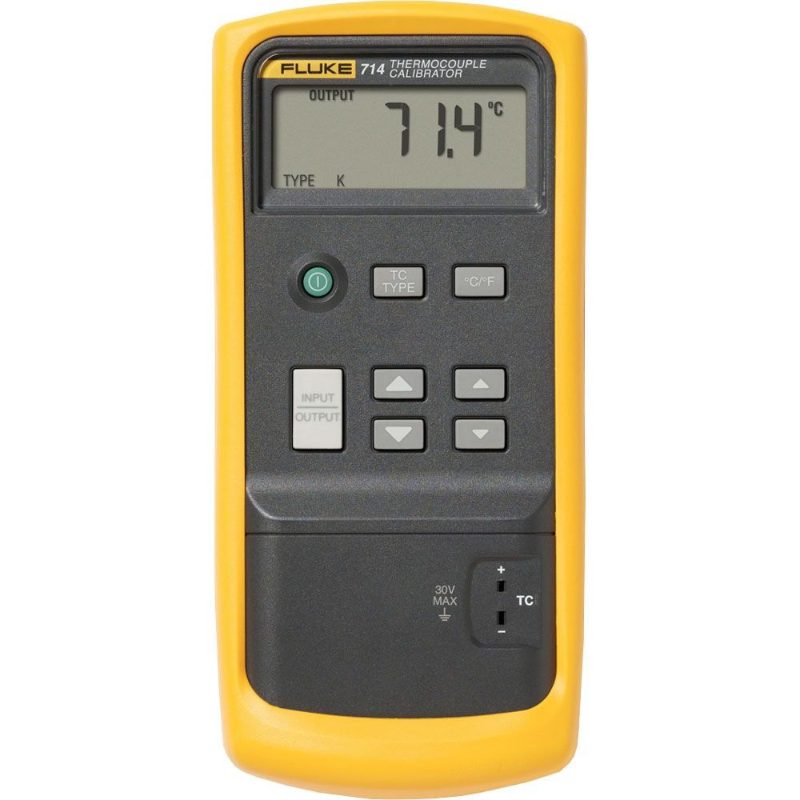

714 Thermocouple Calibrator

The Fluke 714 Thermocouple Calibrator delivers outstanding performance, durability and reliability.



The Fluke 714 Thermocouple Calibrator delivers outstanding performance, durability and reliability.

The calibrator is compact, lightweight, and easy to carry. With a push button interface similar to the multifunction Fluke 740 Series Documenting Process Calibrators, the 714 is easy to use. It is EMI tolerant, dust and splash resistant, and features a removable battery door for quick battery change

Features at a Glance

  • Measure temperature from TC output
  • Simulate TC output
  • Operable with nine types of thermocouples
  • Calibrate linear TC transmitter with mV source function
  • Selectable ºF or ºC
  • Thermocouple mini-jack termination
  • Available as accessories: Fluke-700TC1 and TC2 Thermocouple Mini-plug Kits
  • Holster features test lead storage
  • Compatible with toolpack magnetic hanging system







Functional specifications

Measure / simulate thermocouple
Range:  -200 to 1800 ºC, depending on type
Resolution:  0.1 ºC
Accuracy:  0.3 ºC + 10 µV
   Note: 9 TC types; J K T E R S B per NIST 175 and ITS-90 L U per DIN 43710 and IPTS-68
Measure / simulate mV
Range:  -10 to 75 mV
Resolution:  0.01 mV
Accuracy:  0.025% + 1 count

Specifications

Display
   LCD, 5 digit temperature and current sim ultaneous

Environmental Specifications

Operating Temperature
   -10ºC to 55ºC
Storage Temperature
   -40ºC to 60ºC
Humidity (Without Condensation)
   95% (10 ºC to 30 ºC)
   75% (30 ºC to 40 ºC)
   45% (40 ºC to 50 ºC)
   35% (50 ºC to 55 ºC)
Operating Altitude
   3,000m max

Safety Specifications

Safety
   CSA C22.2 No. 1010.1:1992

Mechanical & General Specifications

Size
   187 mm L x 87mm W x 32 mm
   (7.93 in. L x 3.86 in. W x 2.06 in D)
Weight
   Approx. 330 g
   (21 oz)
Warranty
   3 years
Shock & Vibration
   Random, 2G, 5-500 Hz
   1m drop test
Battery type
   Single 9V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline





Model Name

Description

Fluke 714

Thermocouple Calibrator including:

  • Protective Yellow Holster with test lead storage
  • Instructions Sheet (14 languages)
  • single 9V alkaline battery
  • NIST-traceable calibration report and data



Accessories common to all models:



Accessory

Description

G3P-Group2
  • GOLD CarePlan.
  • Models covered: 51-2, 52-2, 53-2, 54-2, 192C, 381, 705, 707, 712, 714, 715, 717, 718, 719, 744, 787, 789, 1550C, 1577, and 1587.
  • Extends warranty from three to five years and includes five annual NIST traceable calibrations with data.
S3P-Group2
  • SILVER CarePlan.
  • Models covered: 51-2, 52-2, 53-2, 54-2, 192C, 381, 705, 707, 712, 714, 715, 717, 718, 719, 744, 787, 789, 1550C, 1577, and 1587.
  • Extends warranty from three to five years.
700TC2 Thermocouple Plug Kit 700TC2
80CJ-M Type J Male Mini-Connectors
80CK-M Type K Male Mini-Connectors
80PJ-EXT Extension Wire Kit
80PK-1 Bead Probe (Type K)
80PK-22 SureGrip™ Immersion Temperature Probe
80PK-24 SureGrip™ Air Temperature Probe
80PK-25 SureGrip™ Piercing Temperature Probe
80PK-26 SureGrip™ Tapered Temperature Probe
80PK-27 Industrial Surface Temperature Probe
80PK-3A Surface Probe
80PK-8 Pipe Clamp Temperature Probe
80PK-9 General Purpose Probe
80PK-EXT Extension Wire Kit
80PT-25 SureGrip Piercing Temperature Probe
80PT-EXT Extension Wire Kit
C100 Universal Carrying Case
C25 Large Soft Case for DMMs
C510 Leather Meter Case
C520A Leather Tester Case
C550 Tool Bag
C800 Meter and Accessory Case
C90 Soft Case for DMMs
CXT170 Extreme Case
H80M Protective Holster with Magnetic Hanging Strap
L210 Probe Light Kit
L215 SureGrip™ Kit with Probe Light and Probe Extender
