9132 and 9133 Portable Infrared Calibrators

Our portable IR calibrators provide stable blackbody targets for calibrating noncontact IR thermometers from –30 °C to 500 °C.



Precision when you need it for infrared temperature calibration

  • Certify IR pyrometers from –30 °C to 500 °C (–22 °F to 932 °F)
  • Large 57 mm (2.25 in) blackbody target
  • RTD reference well for contact temperature measurement
  • Small, compact design in a blackbody calibrator

Whether you’re using in-line or handheld infrared pyrometers, you need good calibration standards to verify their accuracy. Our portable IR calibrators provide stable blackbody targets for calibrating noncontact IR thermometers from –30 °C to 500 °C.

These blackbody calibrator units feature a temperature controlled measurement surface with a diameter of 2.25 in (57 mm). The target temperature can be controlled in set-point increments of 0.1° from –30 °C to 500 °C and a well is located directly behind the blackbody surface for contact calibration.

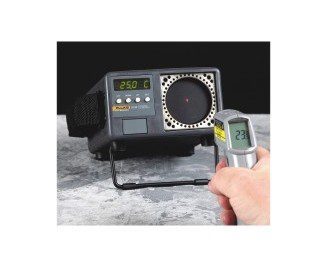

9132: blackbody calibration up to 500 °C

For IR calibrations above normal ambient, the 9132 blackbody calibration source provides a stable measurement surface up to 500 °C (932 °F). Short heating and cooling times mean you won’t have to wait long to get your work done.

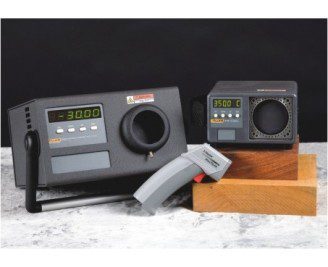

9133: blackbody calibration from -30 °C to 150 °C

If you’re calibrating IR thermometers at cold temperatures, you’ll love our new 9133 blackbody calibration source. With solid-state cooling technology, this new IR calibrator reaches –30°C (22°F) in normal ambient conditions. With a conveniently located dry gas fitting on the front bezel, ice build up on the target can be avoided. At the upper end of its range, the 9133 provides stable temperatures to 160°C (320°F).

With heating and cooling times of about 15 minutes from ambient to either extreme, the 9133 gets you to temperature quickly and performs when it gets there.







Specifications

9133

9132

Temperature Range –30 °C to 150 °C at 23 °C ambient
(–22 °F to 302 °F at 73 °F ambient)
50 °C to 500 °C
(122°F to 932°F)

Accuracy



± 0.4 °C (± 0.72 °F)



± 0.5 °C at 100 °C
(± 0.9°F at 212°F)
± 0.8 °C at 500 °C
(± 1.4 °F at 932 °F)

Stability



± 0.1 °C (± 0.18 °F)



± 0.1°C at 100°C
(± 0.18°F at 212°F)
± 0.3°C at 500°C
(± 0.54°F at 932°F)
Target Size 57 mm (2.25 in)
Target Emissivity 0.95 (± 0.02 from 8 to 14 mm)
Resolution 0.1 °
Heating Time 15 minutes (25 °C to 150 °C) 30 minutes (50 °C to 500 °C)
Cooling Time 15 minutes (25 °C to –20 °C) 30 minutes (500 °C to 100 °C)
Computer Interface RS-232 I/O included with 9930 Interface-it software
Power 115 V ac (± 10 %), 1.5 A, or
230 V ac (± 10 %), 1.0 A,
switchable, 50/60 Hz, 200 W
115 V ac (± 10 %), 3 A or
230 V ac (± 10 %), 1.5 A,
switchable, 50/60 Hz, 340 W
Size (HxWxD) 152 x 286 x 267 mm
(6 x 11.25 x 10.5 in)
102 x 152 x 178 mm
(4 x 6 x 7 in )
Weight 4.6 kg (10 lb) 1.8 kg (4 lb)
NIST-Traceable
Contact Calibration
Data at –30°C, 0°C, 25°C, 75°C, 100°C, 125°C, and 150°C Data at 50°C, 100°C, 200°C, 250°C, 300°C, 400°C, and 500°C






Model Name

Description

9132

Portable IR Calibrator, 500 °C

Accessory Description
9308 Rugged Carrying Case : 9102, 9132, 9140
9133

Portable IR Calibrator, –30 °C

Accessory Description
9302 Rugged Carrying Case (holds 1560 and up to five modules)



Accessories common to all models:



Accessory

Description

SC1-INIR Silver Care Plan, 1-yr Extended Warranty, Industrial IR Calibrators
SC2-INIR Silver Care Plan, 2-yr Extended Warranty, Industrial IR Calibrators
SC4-INIR Silver Care Plan, 4-yr Extended Warranty, Industrial IR Calibrators
