Air Baths

Air Baths Features

  • Fan-forced air circulation
  • Peltier driven technology
  • Dry, clean, stable and silent storage for resistors
  • User friendly control panel which includes an LCD and configurable functions
  • Extensive heat insulation on all chamber sides and doors
  • Open door alarm
  • Height adjustable stainless steel wire trays

Kambic Air Baths have exceptional performance and unbeatable value and are a perfect solution for an ultra-stable environment.

The Temperature Controlled Chambers are constructed as a convenient and inexpensive way to maintain the temperature of air resistors in the calibration laboratory. Easy access to the inside of the chamber is achieved through the conveniently mounted front door.

The temperature controlled chambers have an ultra-stable temperature and uniformity, with a world class metrology performance. They provide a large and oil free working area, with low noise. Cooling and heating for the chamber are provided for by a thermoelectric Peltier element using internal thermistors as sensing elements. Internal fans are used to move the air inside the chamber to provide for better temperature stability and uniformity while maintaining a quiet operation. The internal temperature is shown on an external display located on the front of the chamber. A user friendly interior design with state of the art repeatability and a user-friendly touch screen interface.

Fully stainless-steel chamber with 5 side double skin creating chamber in chamber environment for superior temperature uniformity. All exterior in galvanized and powder coated steel.

Available chamber types:

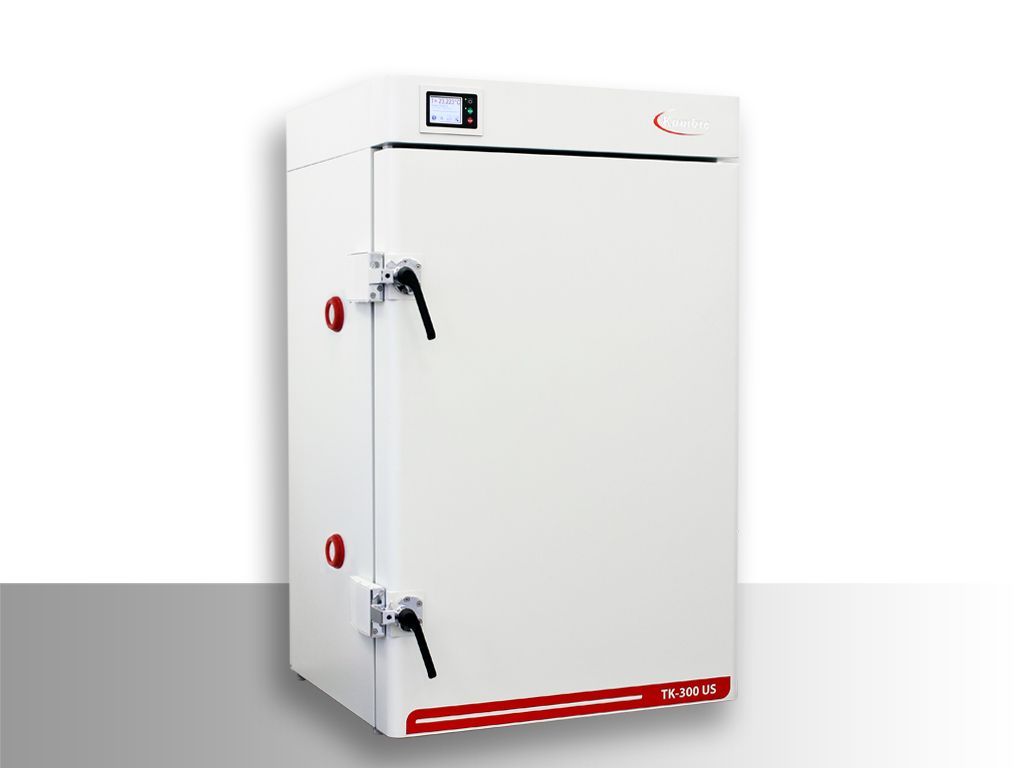

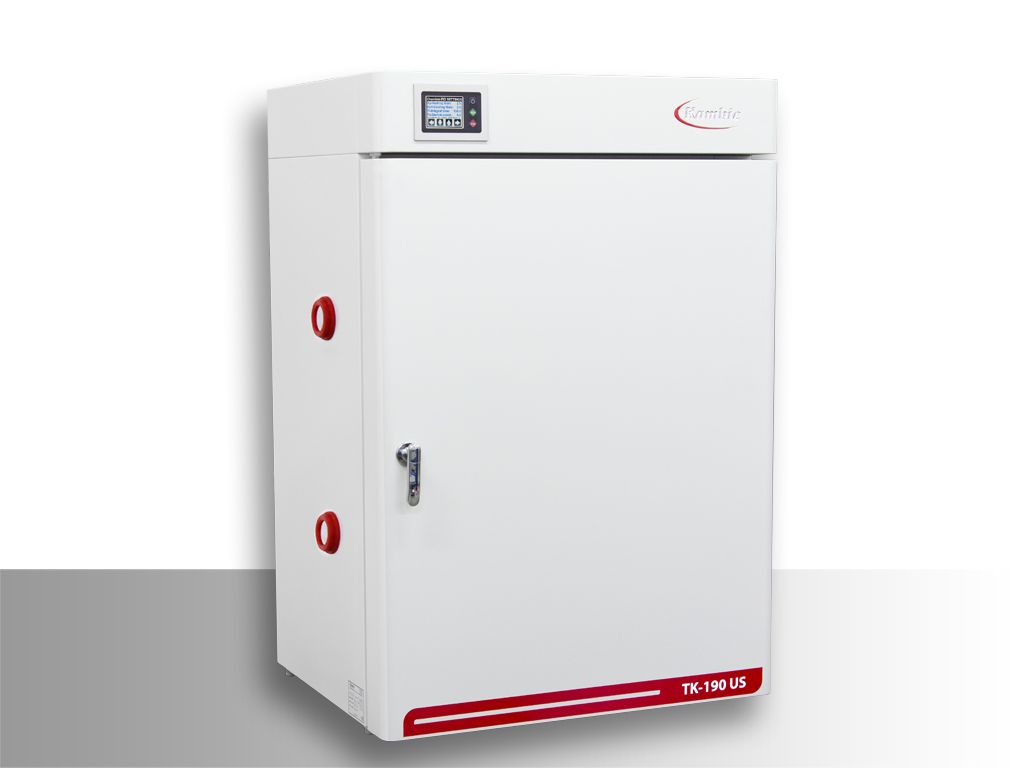

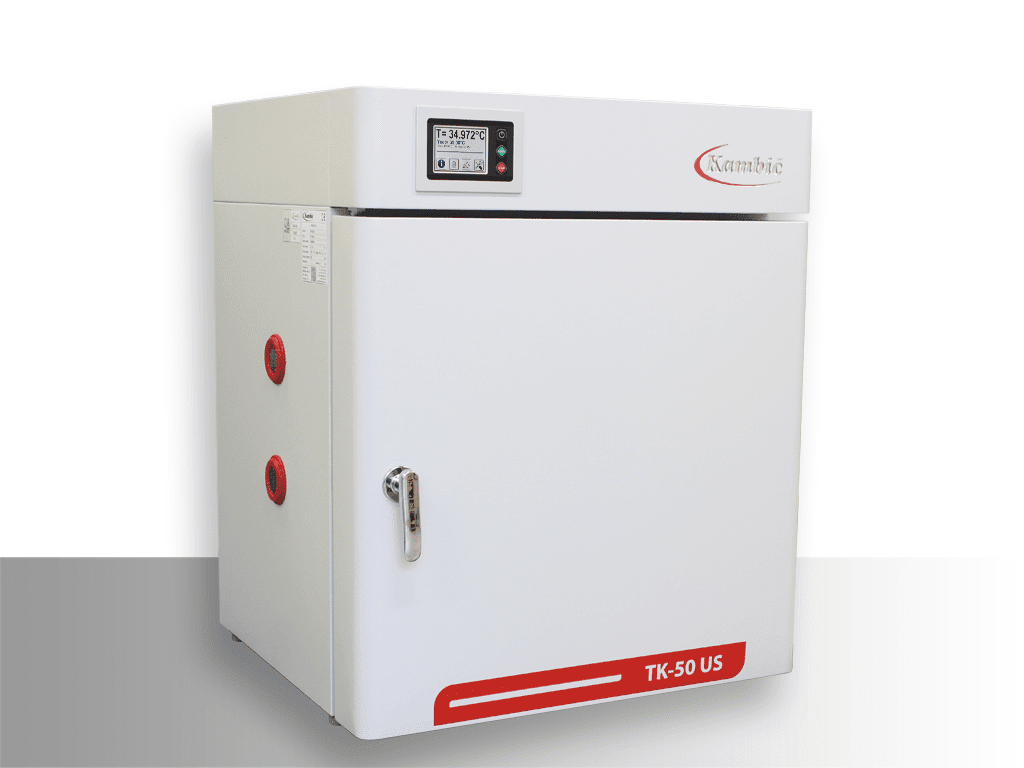

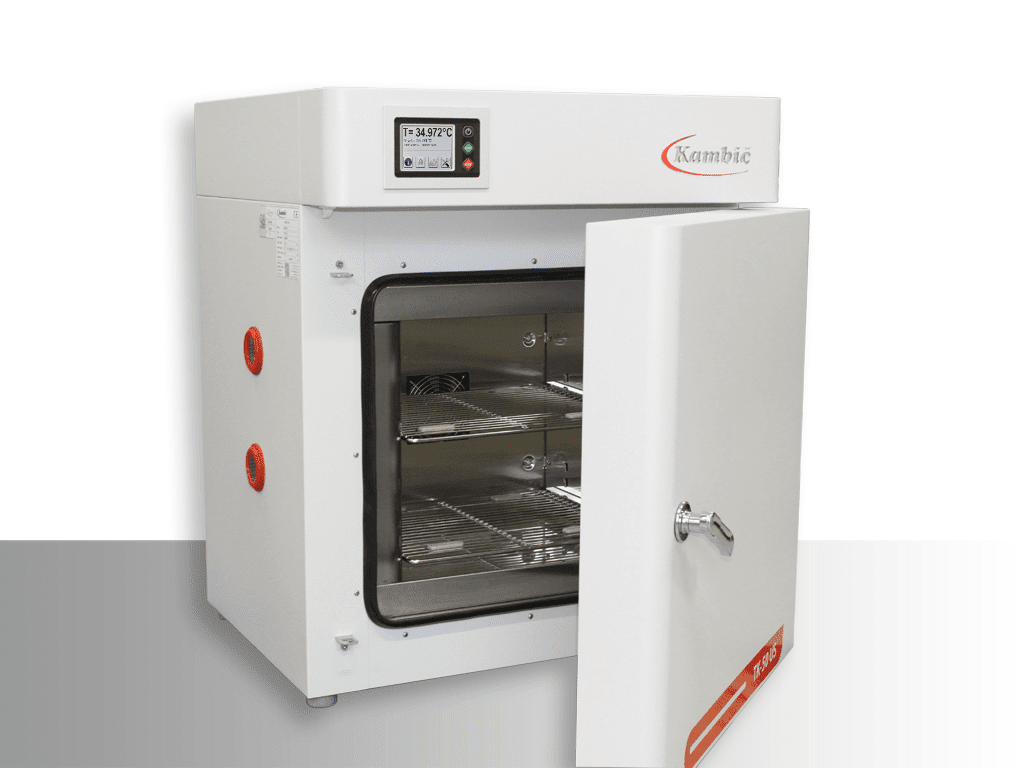

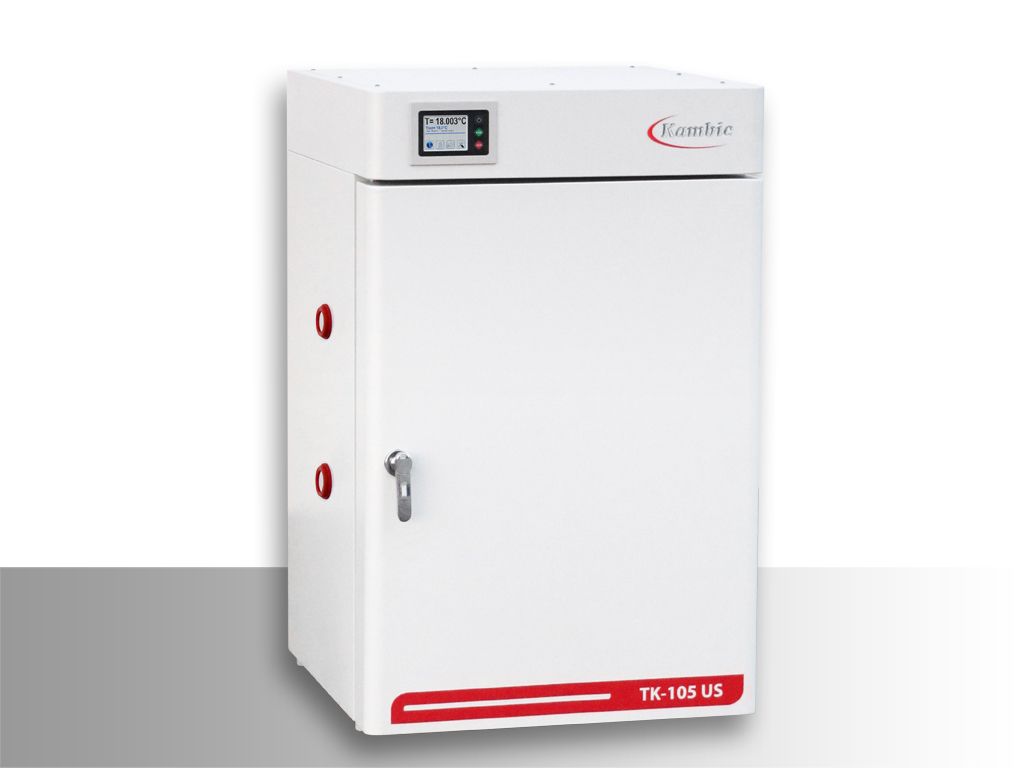

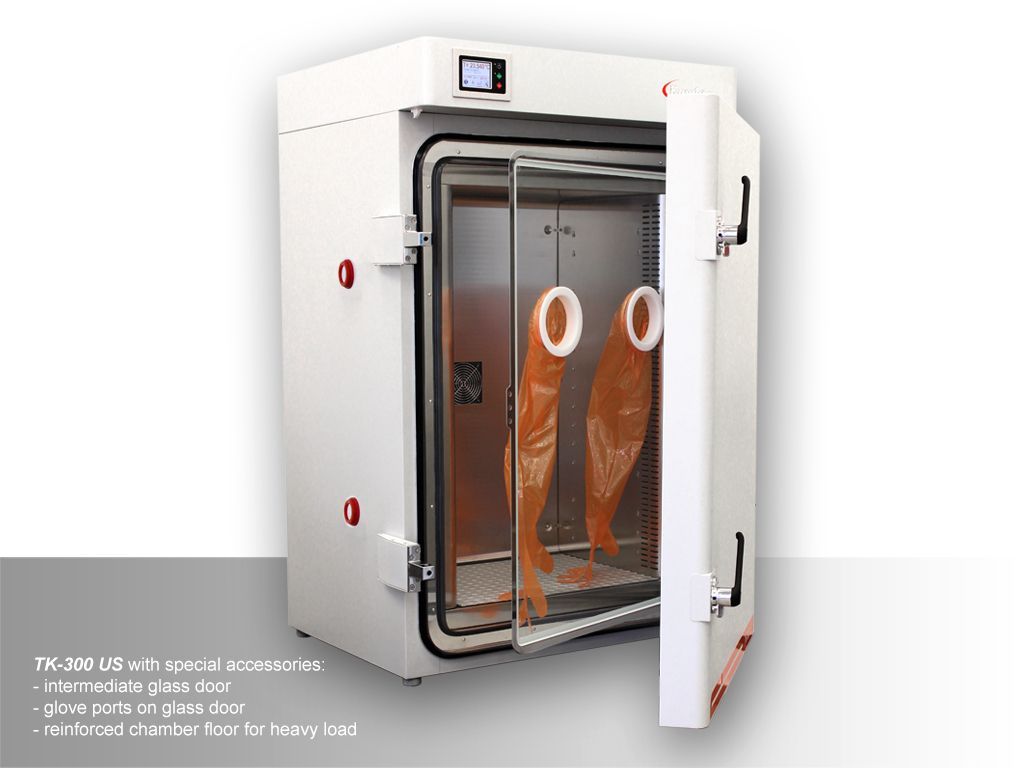

  TK-8 US TK-50 US TK-105 US TK-190 US TK-300 US
Volume 8L 53L 105L 190L 105L
Temperature Range +15°C to +50°C +15°C to +50°C +15°C to +50°C +15°C to +50°C + 18°C to 35°C
External dimensions (WxHxD) 230 x 578 x 332mm 705 x 865 x 640mm 705 x 1130 x 700mm 875 x 1300 x 700mm 905 x 1400 x 800mm
Internal Dimensions (WxHxD) 160 x 330 x 157mm 400 x 375 x 350mm 400 x 640 x 410mm 570 x 810 x 410mm 601 x 1000 x 500mm

Accessories:

Select from a range of accessories including;

  • Additional wire shelves
  • Aditional sealable side access port
  • Ethernet interface
  • USB interface
