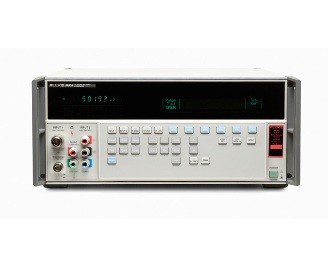

5790A AC Measurement Standard

This product is discontinued.

It has been replaced by the 5790B AC Measurement Standard.



General Specifications

AC V Measurement
Range:  700 mV to 1000V
   10 Hz to 1 MHz
Best 1Year Specification:  ± 24 ppm
Wideband Measurement
Range:  700 mV to 7V
   10 Hz to 30 MHz
Best 1Year Specification:  ± 0.35%
Warm up Time
   30 minutes
Relative Humidity
Operating:  45% to 50°C; 75% to 45°C; 95% to 30°C
Storage:  < 95% non-condensing
Altitude
Operating:  3,050 meters (10,000 feet)
Non-Operating:  12,200 meters (40,000 feet)
Temperature Performance
Operating:  0°C to 50°C
Calibration:  15°C to 35°C
Storage Temperature
   -40°C to 70°C
EMI/RFI
   Complies with FCC Part 15 Subpart B, Class B; VDE 0871, Class B; ESD: EIA PN-1361. Surge: ANSI C62.41-1980, Category A
Reliability
   MIL-T-28800D, paragraph 3.13.3
Line Power
   47 Hz to 63 Hz; +/-10% of selectable line voltages: 100V, 110V, 115V, 120V, 200V, 220V, 230V, 240V
Safety
   Complies with UL 1244 and IEC348-1978 and IEC 1010 and CSA C22.2 No. 231
Interfaces
   RS-232C, IEEE-488
Maximum Power
   5790A: 95 VA;
   with wideband: 120 VA
Calibration Documentation 17025 accredited report of calibration included
Size
Height:  17.8 cm (7 in) standard rack mount +1.5 cm (0.6 in)
Width:  43.2 cm (17 in)
Depth:  63 cm (24.8 in)
Weight
   5790A: 24 kg (53 lbs.); with wideband: 24.5 kg (54 lbs





Model Name

Description

5790A AC Measurement Standard

Accessories common to all models:

Accessory

Description

5440A-7002 Low Thermal Copper EMF Plug-In Cables, Banana Connectors
5440A-7003 Low Thermal Copper EMF Plug-In Cables, Spade Connectors
57XX/CASE Transit Case for 57XXA Series
5790A-03 Wideband AC Measurement
Y5737 5790A and 5700A/5720A Rack Mount Kit. Includes 24 in. slides that allow for side ventilation
Y8021 Shielded IEEE-488 Cable, 1m
Y8022 Shielded IEEE-488 Cable, 2m
