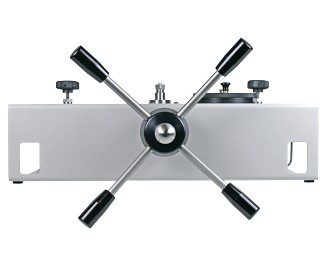

MPG2-H Manually Operated Pressure Generator Controller for Hydraulic Pressure

MPG2-H is a compact, easy-to-use and economical system for manually generating and adjusting pressure from atmosphere to as high as 200 MPa

  • Economic solution to manually generate and adjust pressure from atmosphere to as high as 200 MPa (30,000 psi) • Generates large pressure changes quickly and adjusts pressure precisely at a setpoint • Self-contained design with compact 26 cm x 44 cm (10.2 in. x 17.3 in.) footprint • Includes two (2) test ports, with standard high pressure gland and collar fittings • Ideal for working with high pressure

MPG2-H is a compact, easy-to-use and economical system for manually generating and adjusting pressure from atmosphere to as high as 200 MPa (30,000 psi) in systems where precise pressure adjustment is required.

MPG2-H is very well suited for use as the pressure generating and controlling component in calibration and testing systems using a digital or analog pressure indicator as a reference. It is also ideal for working with oil operated piston gauges.

MPG2-H is the standard choice for manual pressure generation and control in a Fluke Calibration PG7302 high performance oil operated piston gauge system in which power assisted or automated pressure control is not needed







MPG2-H General Specifications

  MPG2-H MPG2-H-HV
Maximum pressure 200 MPa (30,000 psi) 100 MPa (15,000 psi)
Variable volume displacement 3 cc (0.18 cu in) 7 cc (0.45 cu in)
Reservoir capacity 300 cc (18.3 cu in) 300 cc (18.3 cu in)
Test connections DH500 (equivalent to AE F250C, HIP HF4, etc.)
Weight 10 kg (22 lb)
Dimensions (W x H x D) 400 mm x 136 mm x 300 mm (15.7 in x 5.4 in x 11.8 in)
Operating fluid Any non-corrosive oil, water, water/alcohol. Inquire about other fluids.




Model Name

Description

MPG2-H Hydraulic pressure generator Manual hydraulic pressure generation and control to 30,000 psi (200 MPa)
MPG2-H-HV Manual hydraulic pressure generation and control to 15,000 psi (100 MPa) complete with user's manual.

Accessories common to all models:

Accessory

Description

Fluid, Sebacate Sebacate Oil, 1 qt. (part #3069043)
