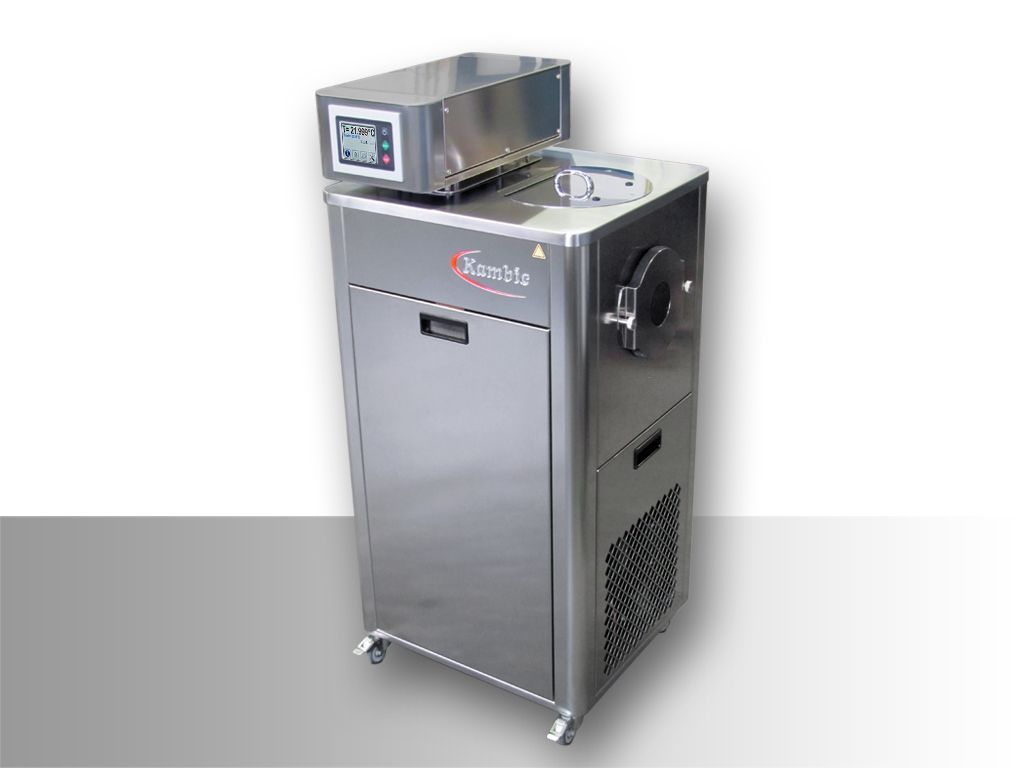

Black Body Cavity Ready Calibration Baths
- Perfect solution for calibrating IR thermometers and other thermographic equipment
- Various shapes black body cavities available
- Uniformity and stability in mK range
- Fluid ensures perfect heat transfer
- Unique vertical flow design
- Two temperature ranges
- State of the art solution
-

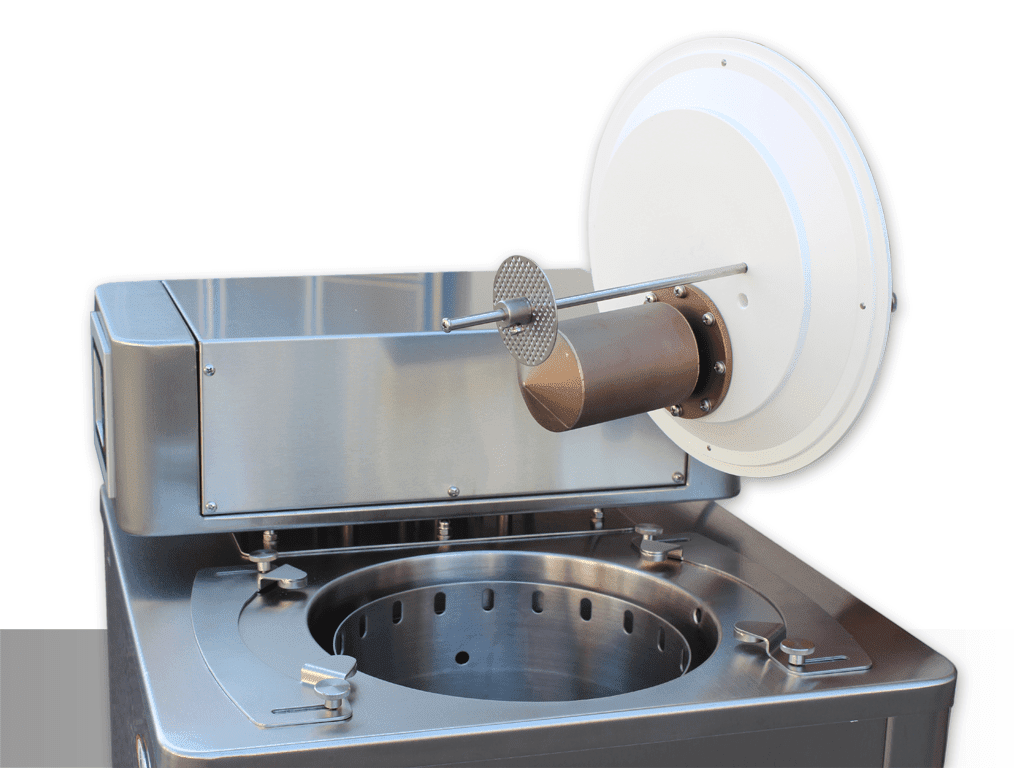

Blackbody cavity with emissivity higher than 0.99 in a calibration fluid bath
-
Metrological uniformity and stability in mK range
-
Ready-to-fit reference PRT or SPRT for monitoring fluid stability
-
Temperature range: 30 C ... 130 C 0 C ... 130 C when connected to a circulating cooler
-

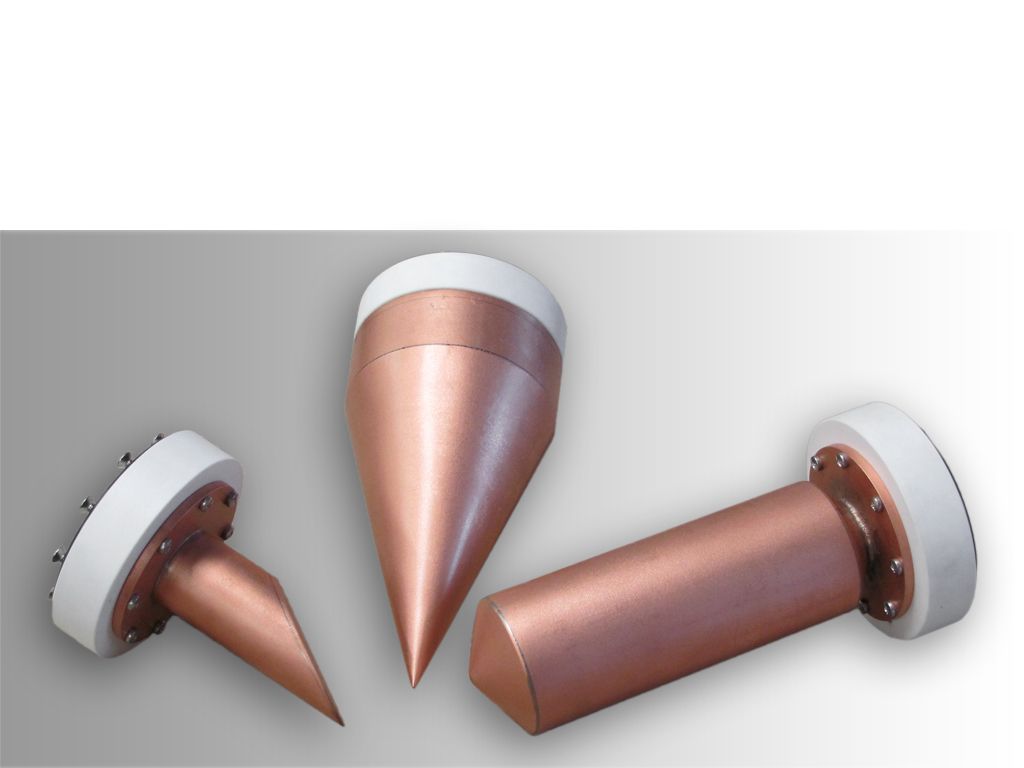

Various standard and tailored blackbody cavity shapes available
-

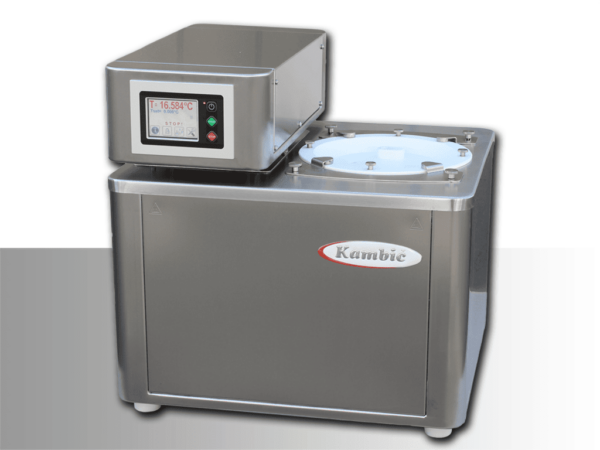

Ready to run in benchtop design
Technical data:
|
|
OB-15/2 BB |
OB-15/2 BBLT |
|
|
|
|
|
External dimensions |
530 x 1090 x 470 |
530 x 1090 x 470 |
|
Internal dimensions |
Ø 225 x 270 |
Ø 225 x 270 |
|
Volume (L) |
~ 15 |
~ 15 |
|
Temperature range (°C) |
40 ... + 250 |
- 20 ... + 130 |
|
Temperature display resolution (°C) |
0.001 |
0.001 |
|
Temperature set resolution (°C) |
0.001 |
0.001 |
|
Temperature Stability |
± 0.003 @ 100 °C |
± 0.006 @ - 20 °C ± 0.005 @ 0 °C |
|
Temperature uniformity (°C) |
± 0.007 @ 100 °C |
± 0.007 @ -20 °C |
|
Heating rate |
~ 42 min |
~ 55 min |
|
Cooling rate |
N/A |
~ 35 min |
|
Temperature Control |
PID |
PID |
|
Noise level (dBA) |
< 48 |
< 58 |
|
Cooling |
Natural |
Compressor Cooling System |
|
Power supply |
230 V 50/60 HZ (± 10 %) |
230 V 50/60 HZ |
|
Wattage (W) |
1100 |
2500 |
|
Interface |
RS 232 (USB or Ethernet as option) |
RS 232 (USB or Ethernet as option) |
|
Weight (kg) |
~ 63 |
~ 88 |
Accessories:
|
|
|
|
Calibration bath OB-15/2 BB |
|
|
Calibration bath OB-15/2 BBLT |
|
|
Black Body cavity ASTM standard |
|
|
Black Body cavity JIS T standard |
|
|
Black Body cavity CEN EN standard |
|
|
USB interface |
|
|
Ethernet interface |
|
|
Evaluation report – performed by Kambic |
|
|
Evaluation report (accredited ISO/IEC 17025:2017) |
|
|
OB-Tool (Monitoring and data collection software) |
|
|
External fluid level for LIG |
|
|
Vertical fixture |
|
|

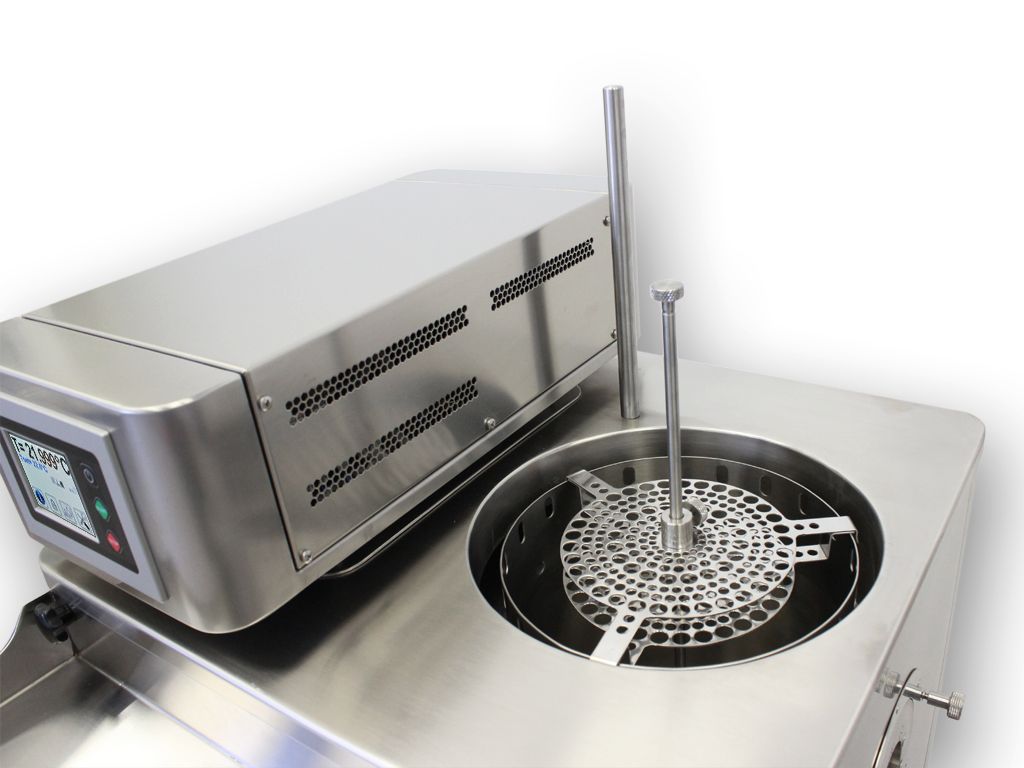

Adjustable multiple probe fixture |
|
|
LIG (liquid in glass thermometer) fixture |
|
|
Local fume hood with fan |
|
|
Foldable shelve |
|
|
Black body mounting flange cover (for operating without black body cavity) |
|
|
Extra lid for OB-15/2 |
|
|
Extra side insulation lid for OB-15/2 |
|
|
Silicone oil fluid KDC 200.50 (+ 30 °C ...+ 278 °C) |
|
|
Silicone oil fluid KDC 200.05 (- 40 °C ...+ 130 °C) |
*Black Body Cavity is not included with the base unit. It has to be ordered separately!
