The Kambic Calibration Climatic Chamber models allow you to calibrate a range of products, such as air temperature and relative humidity sensors. The high-quality chambers provide superior temperature & humidity control and uniformity. You can access the inside of the chamber via the convenient front access door and the sides provide easy access for cables & probes. Our calibration climatic chamber models provide the benefit of stable, silent & vibration free climatic conditions for optimum performance. All Kambic products offer world-class metrology performance and product features such as the user-friendly interface make these chambers highly beneficial at an affordable cost.
|

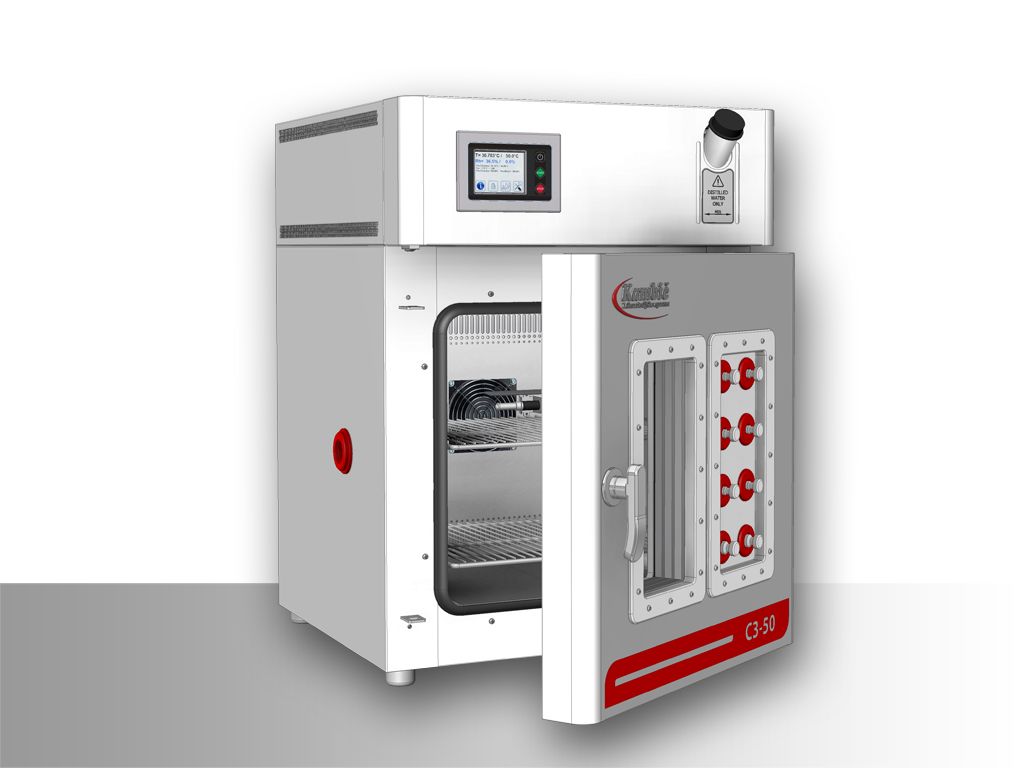

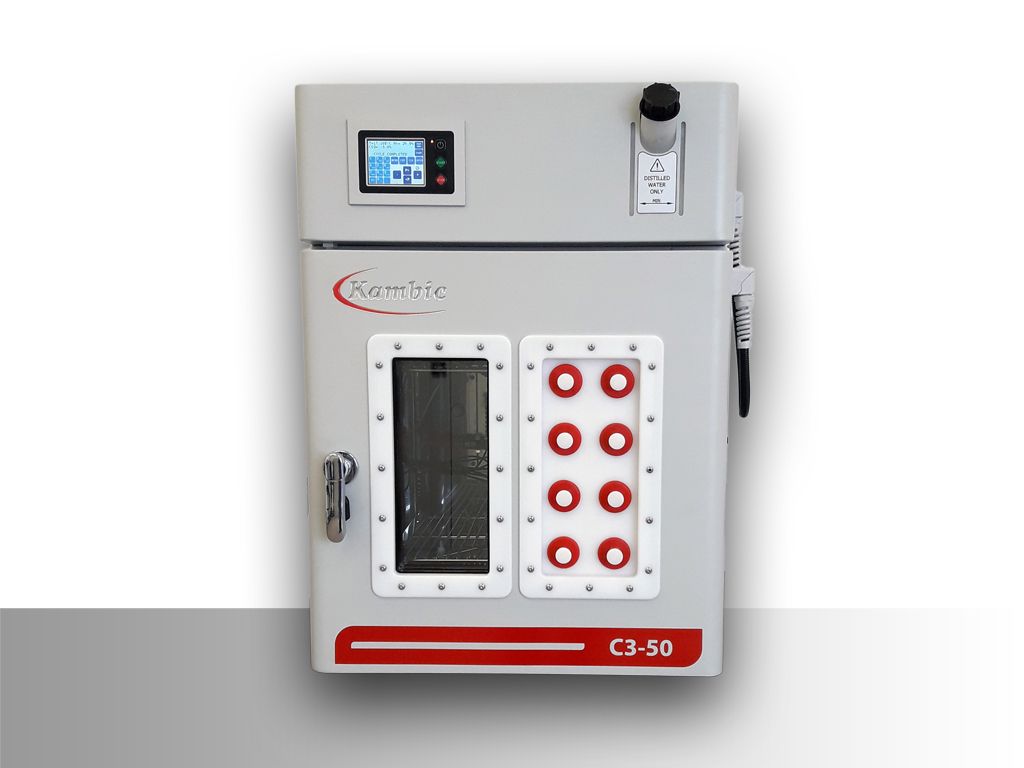

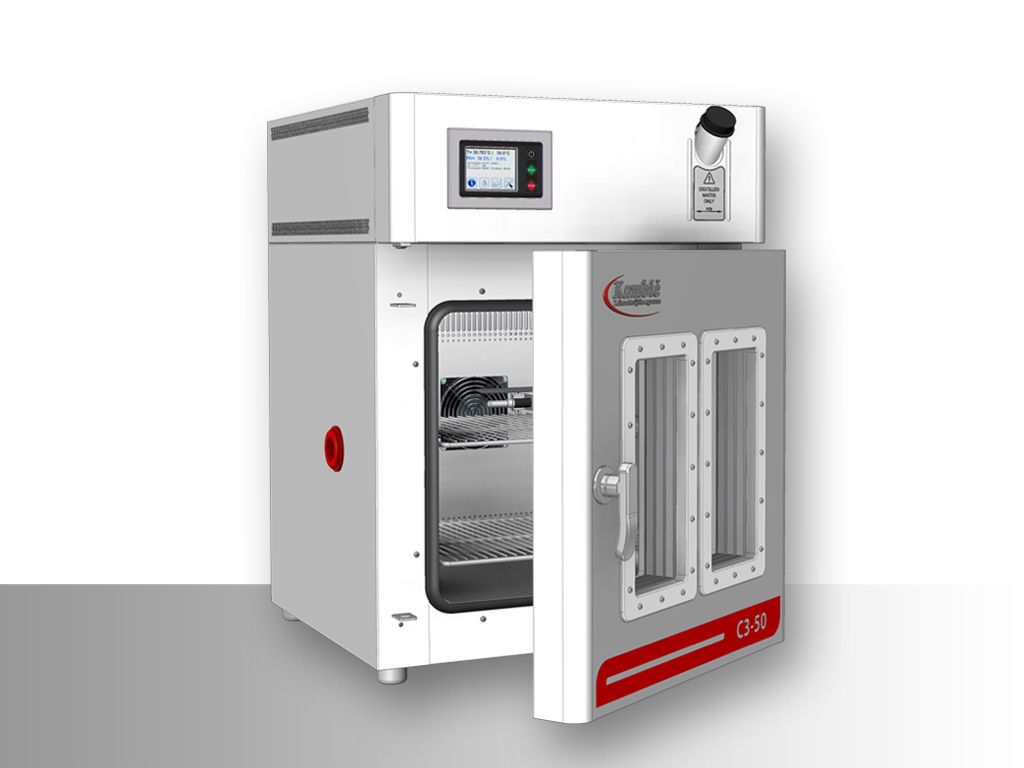

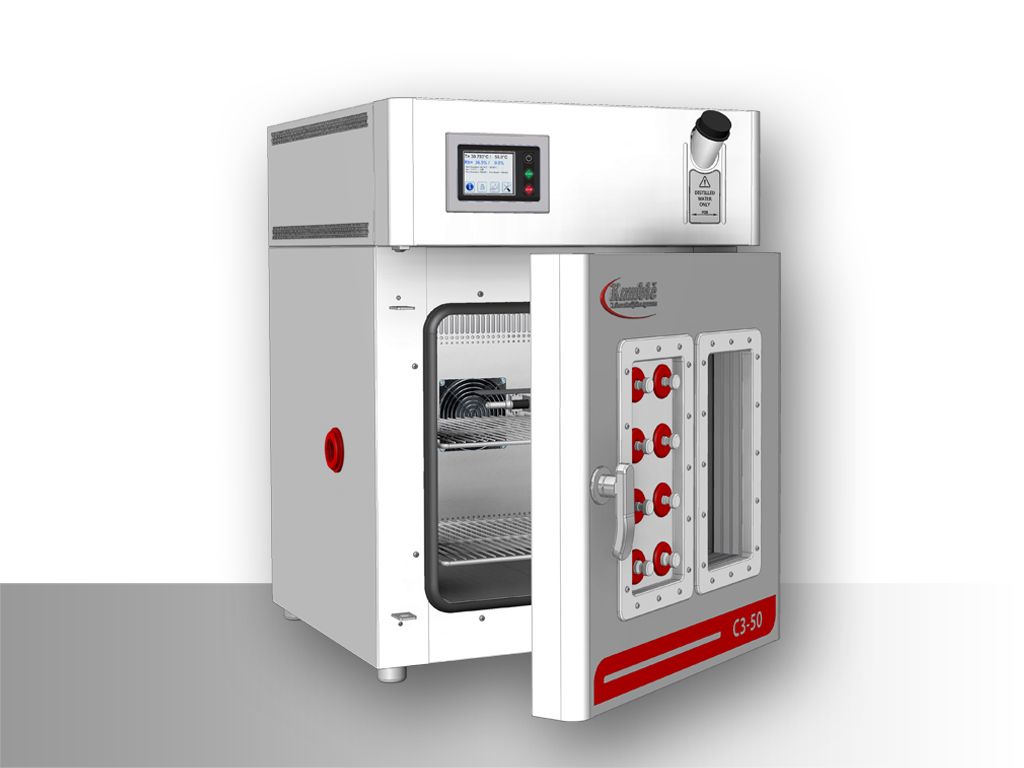

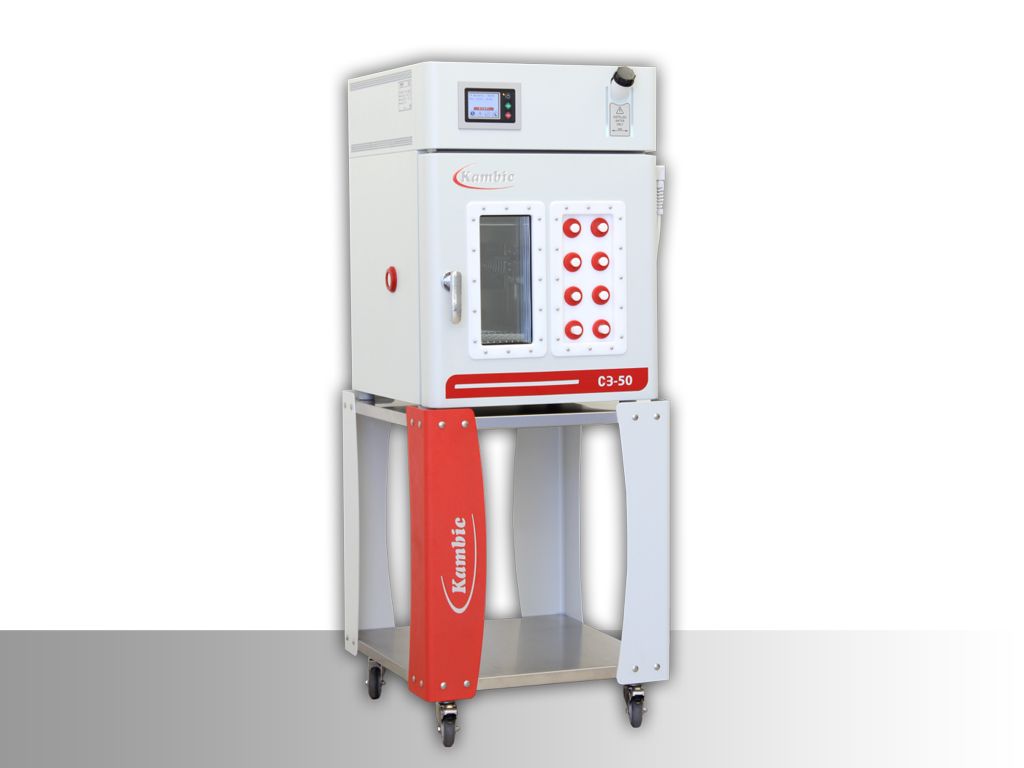

C3-50 |

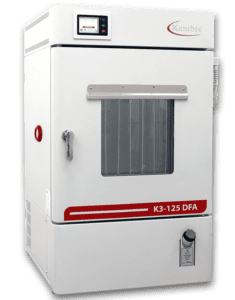

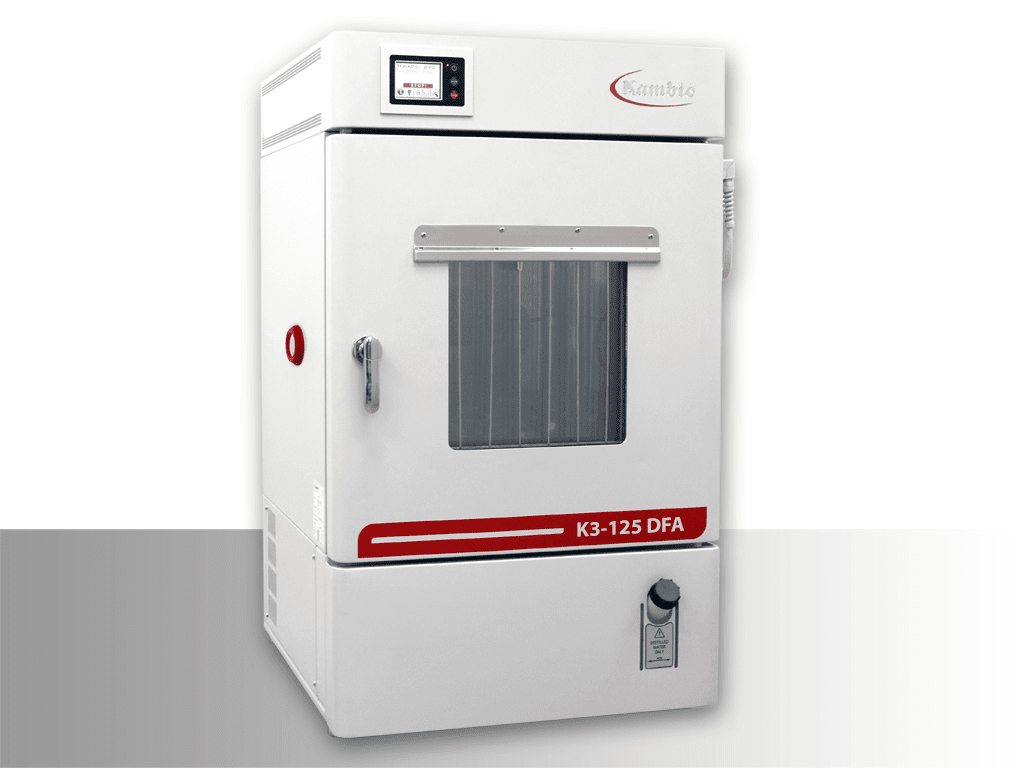

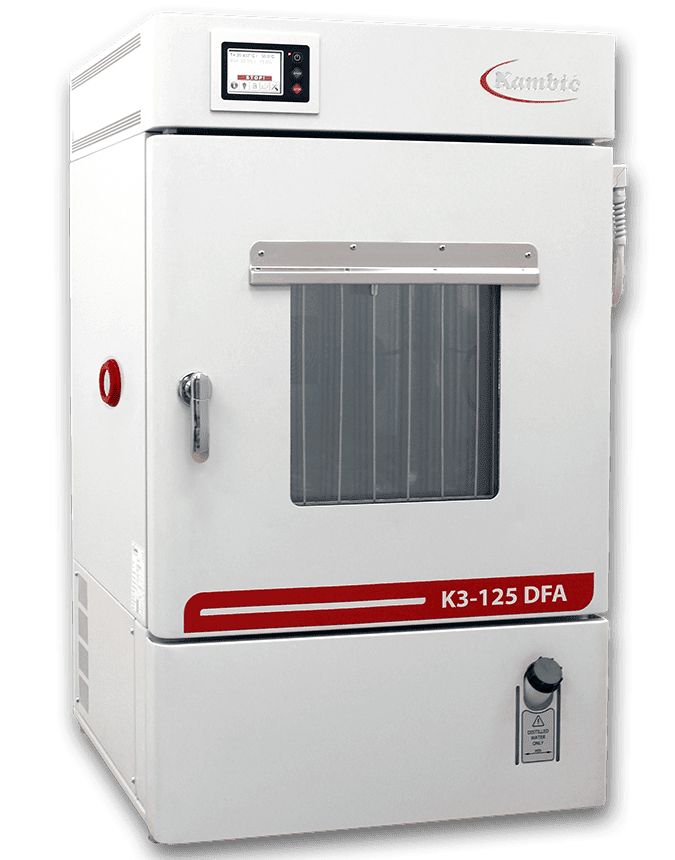

K3-125 DFA |
|
||
External dimensions |
570 x 800 x 615 |
670 x 1140 x 920 |
Internal dimensions |
400 x 400 x 360 |
500 x 450 x 500 |
Volume (L) |
~ 57 |
~ 112 |
Temperature range (°C) |
+ 10 ...+ 55 |
- 5 ...+ 60 |
Temperature display resolution (°C) |
0.001 |
0.001 |
Temperature set resolution (°C) |
0.1 |
0.1 |
Temperature Stability |
± 0.02 °C |
± 0.06 @ + 0 °C |
Temperature uniformity (°C) |
0.5 |
± 0.15 @ + 0 °C |
Relative humidity range (%) |
5...95 |
5...95 |
Relative humidity display resolution (%) |
0.1 |
0.1 |
Relative humidity set resolution (%) |
0.1 |
0.1 |
Relative humidity stability (%) |
± 0.2 @ 21 °C, 50 % Rh (better than ± 0.8 full range) |
± 0.3 @ 20 °C, 60 % Rh (better than ± 0.5 full range) |
Relative humidity uniformity (%) |
Less than 2 % |
- |
Temperature control |
Cascade PID |
PID |
Relative humidity control |
Mixed flow |
Mixed flow |
Heating and cooling |
Solid state thermoelectric |
- |
Time to stabile set-point |
40 min to any point in range |
- |
Power supply |
230 V 50/60 Hz |
230 V 50/60 Hz |
Wattage (W) |
800 |
2300 |

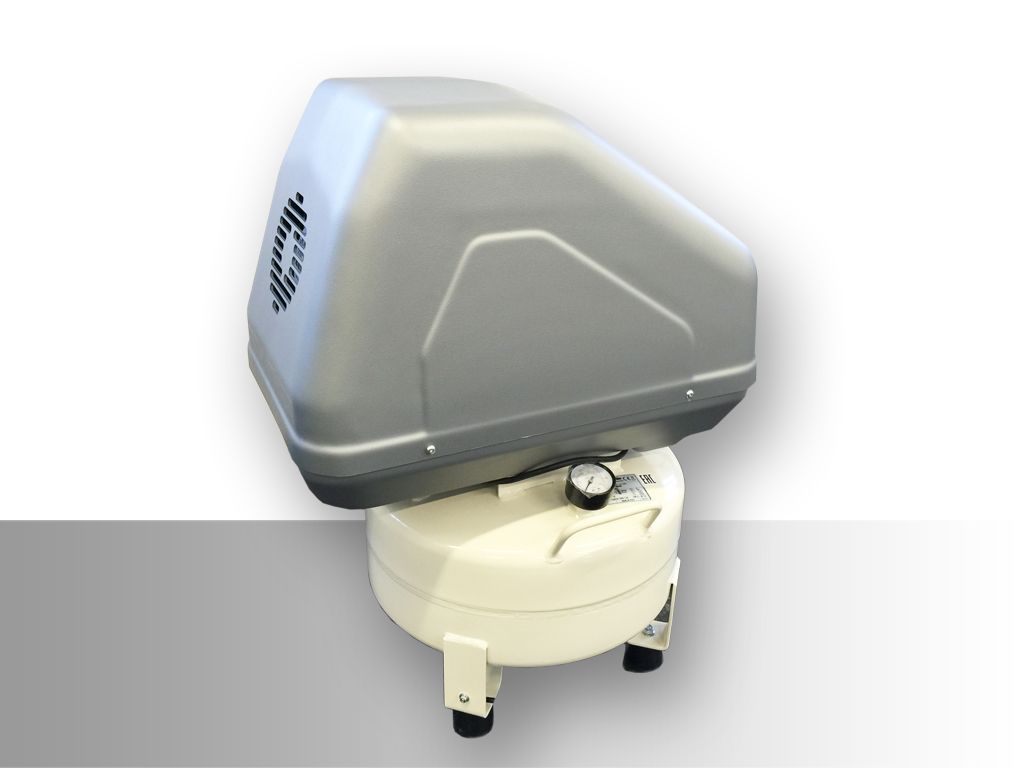

Compressed air supply |
Min. 5 bar, 95 l/min |
Min. 5 bar |
Interface |
RS 232 (USB or Ethernet as option) |
RS 232 (USB and Ethernet as option) |
Shelve |
1 (max 4) |
1 (max 6) |
Shelve capacity (kg) |
15 |
20 |
Max capacity (kg) |
30 |
50 |
Access port (mm) |
1 x Ø 40 left wall as standard, Ø 40, Ø 50, Ø 90 (accessory) (different door options) |
1 x Ø 50 left wall as standard, Ø 40, Ø 50, Ø 90 (accessory) |
Noise (dBA) @ 1 m distance |
<50 |
< 58 |
Weight (kg) |
~79 |
~ 145 |
*All performance in controlled environment (Tambient = 22 °C ± 3 °C)!
*Accessories might affect performance!
