Ultra Stable Standard Resistor Maintenance Baths
Over temperature shut off device

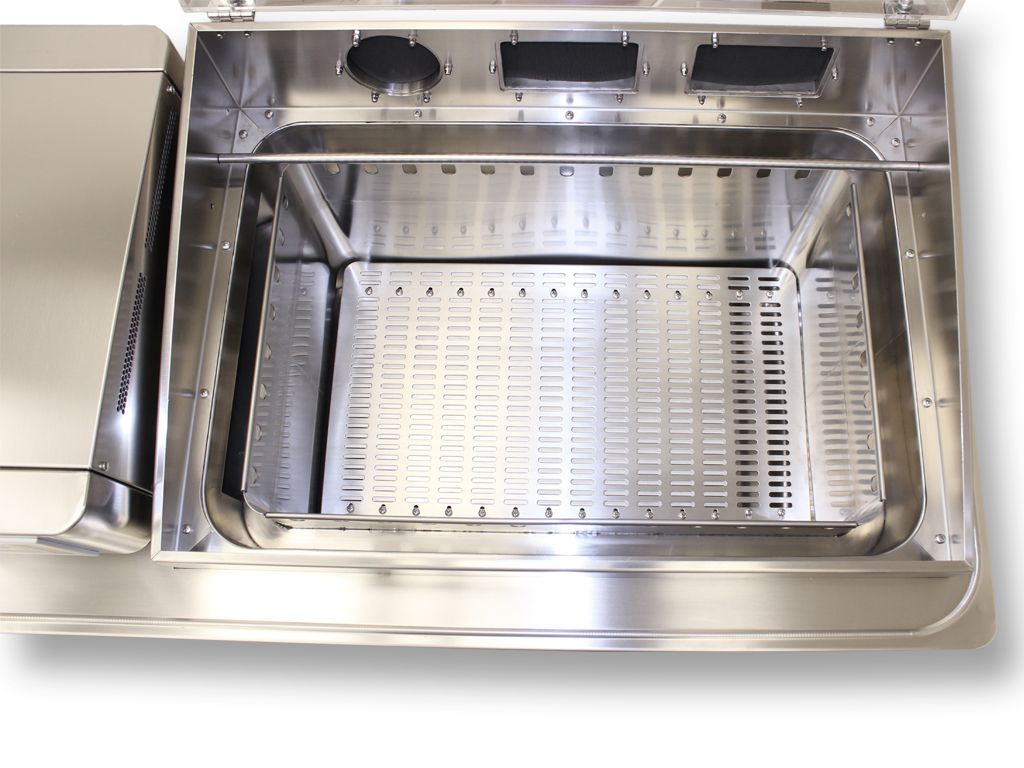

Special double cylinder design with unique vertical flow across entire working volume,
Touch screen based controller with user friendly interface, history graph advance settings options RS-232, USB communication ports
50L or 70L or 110L working chamber volume with immersion depth 268 mm.

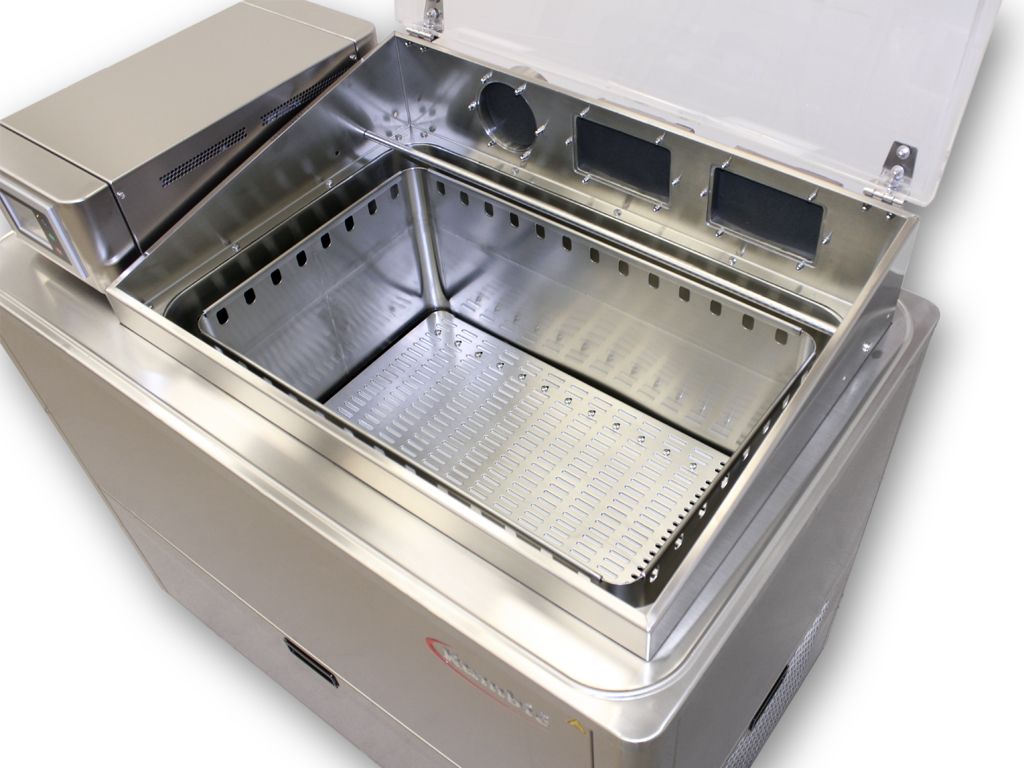

Hinged transparent cover with multiple access options on fix backwall for wires
Full 4 side maintenance access
Extensive high performance heat insulation
Overflow drain with catch pot and fluid drain valve neatly hidden behind the front cover panel
Al exterior and interior in stainless steel AISI 304 SB With rounded corners
Air cooled conventional compressor based refrigeration syste
Mobile standalone unite with built on swivel wheels with brakes
Technical Data:
|
OB-60/2 LTUS |
OB-100/2 LTUS |
OB-110/2 LTUS |
|
|---|---|---|---|
 |
|
 |
|
| External dimensions (WxHxD) | 1000 x 1035 x 550 mm |
1100 x 1035 x 650 mm |
1100 x 1120 x 750 mm |
| Internal Dimensions (WxHxD) |
550 x 320 x 268 mm |
640 x 400 x 268 mm |
640 x 350 x 500 mm |
| Working volume (L) |
~ 47 |
~ 68 |
~ 112 |
|
Fluid quantity for operation (L) |
~ 78 |
~ 115 |
~ 155 |
|
Temperature range (°C) |
+ 5 ...+ 60 |
+ 5 ...+ 60 |
+ 5 ...+ 60 |
|
Temperature display resolution (°C) |
0.001 |
0.001 |
0.001 |
|
Temperature set resolution (°C) |
0.001 | 0.001 | 0.001 |
|
Temperature stability (°C) |
± 0.003 @ 23 °C |
± 0.002 @ 23 °C |
± 0.003 @ 23 °C |
|
Temperature uniformity (°C) |
< ± 0.007@ 23 °C |
< ± 0.007@ 23 °C |
< ± 0.007@ 23 °C |
|
Cool down rate |
~ 260 min |
~ 320 min |
~ 450 min |
|
Heat up rate |
~ 120 min |
~ 150 min |
~ 245 min |
|
Temperature Control |
PID |
PID | PID |
|
Noise level (dBA) |
< 58 |
< 58 |
< 58 |
|
Cooling |
Compressor Cooling System |
Compressor Cooling System |
Compressor Cooling System |
|
Power supply |
230 V 50/60 HZ (± 10 %) |
230V 50/60Hz (± 10 %) |
230V 50/60Hz (± 10 %) |
|
Wattage (W) |
3200 | 3200 | 3200 |
|
Interface |
RS 232 (USB as option) |
RS 232 (USB as option) | RS 232 (USB as option) |
|
Weight (kg) |
~ 110 | ~ 125 | ~ 155 |
Accessories:
Ultra stable standard resistor maintenance bath OB-60/2 LTUS
Ultra stable standard resistor maintenance bath OB-100/2 LTUS
Ultra stable standard resistor maintenance bath OB-110/2 LTUS
USB interface
Evaluation report – performed by Kambic
Evaluation report (accredited ISO/IEC 17025:2017)
OB-Tool (Monitoring and data collection software)
Silicone oil fluid KDC 200.05 (- 40 °C ...+ 130 °C)
